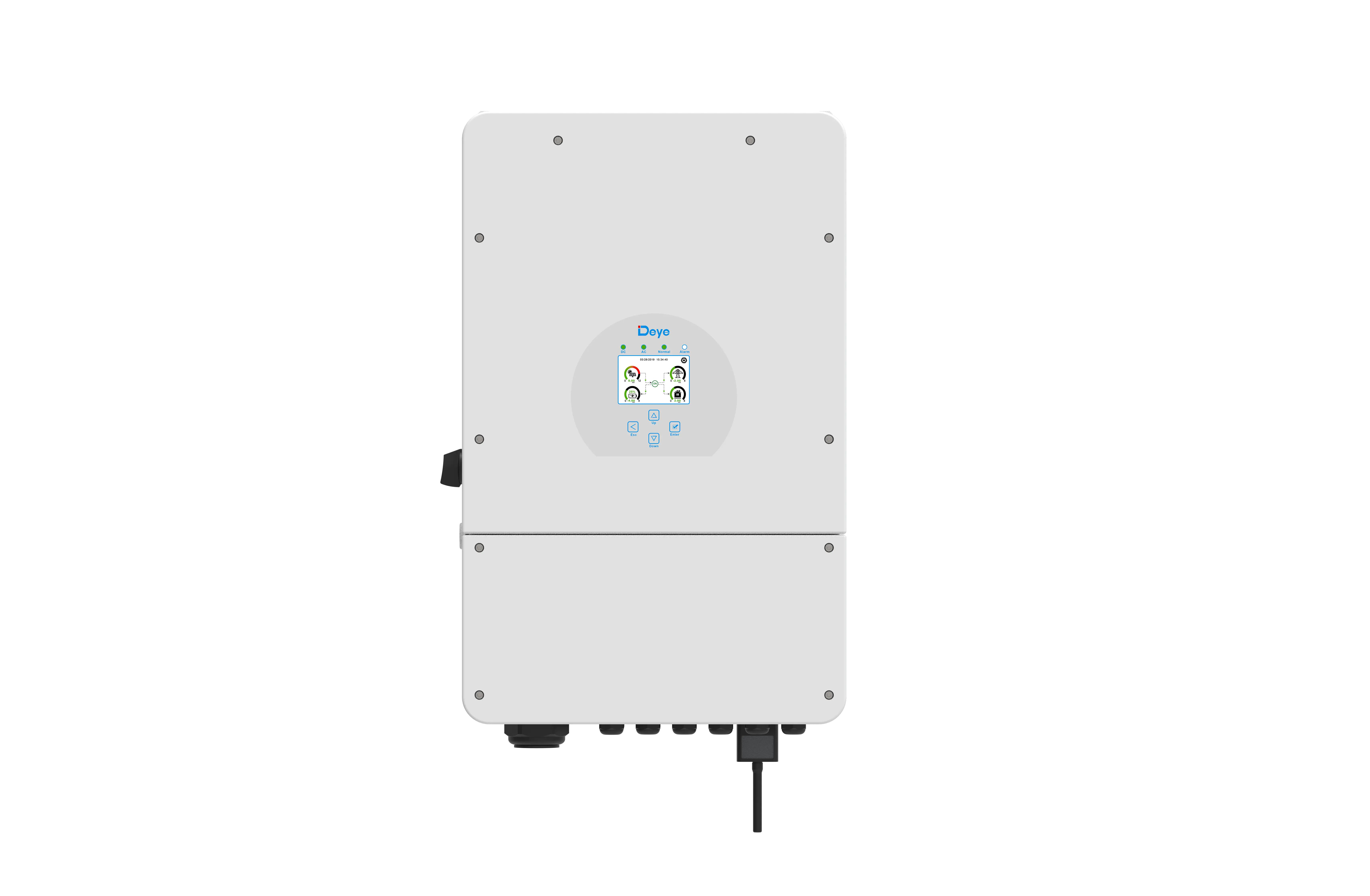

Model
|
SUN-5K-SG02LP1-AU-AM2
|
SUN-6K-SG02LP1-AU-AM2
|
SUN-7.6K-SG02LP1-AU-AM2
|
SUN-8K-SG02LP1-AU-AM2
|
SUN-10K-SG02LP1-AU-AM3
|
SUN-12K-SG02LP1-AU-AM3
|
Battery Input Data
|
|
Battery Type
|
Lead-acid or Lithium-ion
|
|
Battery Voltage Range(V)
|
40-60
|
|
Max.Charging Current(A)
|
120
|
135
|
190
|
190
|
220
|
250
|
|
Max.Discharging Current(A)
|
120
|
135
|
190
|
190
|
220
|
250
|
External Temperature Sensor
|
Yes
|
Charging Curve
|
3 Stages / Equalization
|
|
Charging Strategy for Li-ion Battery
|
Self-adaption to BMS
|
|
PV String Input Data
|
|
Max DC Input Power（W）
|
7500
|
9000
|
11400
|
12000
|
15000
|
18000
|
|
Rated PV Input Voltage (V)
|
370 (125-500)
|
|
Start-up Voltage（V）
|
125
|
|
MPPT Voltage Range（V）
|
150-425
|
|
Full Load DC Voltage Range (V)
|
300-425
|
200-425
|
|
PV Input Current (A)
|
20+20
|
20+20
|
26+26
|
26+26+26
|
|
Max. Input Short-Circuit Current (A)
|
44+44
|
44+44
|
44+44
|
44+44+44
|
|
No.of MPP Trackers/No.of String Per MPP Tracker
|
2/2+2
|
2/2+2
|
2/2+2
|
3/2+2+2
|
|
AC Output Data
|
|
Rated AC Output Active Power（W）
|
5000
|
6000
|
7600
|
8000
|
9999
|
12000
|
|
Max AC Output Active Power (W)
|
5000
|
6000
|
7600
|
8000
|
9999
|
12000
|
|
AC Output Rated Current (A)
|
22.8/21.8
|
27.3/26.1
|
34.6/33.1
|
36.4/34.8
|
45.5/43.5
|
54.6/52.2
|
|
Max AC Output Current（A）
|
22.8/21.8
|
27.3/26.1
|
34.6/33.1
|
36.4/34.8
|
45.5/43.5
|
54.6/52.2
|
|
Max Continuous AC Passthrough（A）
|
35
|
40
|
50
|
60
|
|
Peak Power (off-grid)（W）
|
2 times of rated power,10s
|
|
Power Factor Adjustment Range
|
0.8 leading to 0.8 lagging
|
|
Rated Input/Output Voltage/Range (V)
|
220/230 0.85Un-1.1Un
|
|
Rated Input/Output Grid Frequency/Range(Hz)
|
50/45-55, 60/55-65
|
|
Grid Connection Form
|
L+N+PE
|
|
Total Current Harmonic Distortion THDi
|
<3% (of nominal power)
|
|
DC Injection Current
|
<0.5%ln
|
|
Efficiency
|
|
Max Efficiency
|
97.6%
|
|
Euro Efficiency
|
97%
|
|
MPPT Efficiency
|
99.9%
|
|
Protection
|
|
Integrated
|
Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,
Output Shorted Protection, Surge protection
|
|
Over Voltage Category
|
DC Type II/AC Type III
|
|
Certifications and Standards
|
|
Grid Regulation
|
VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150
|
Safety / EMC Standard
|
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
|
|
General Data
|
|
Operating Temperature Range
|
-40 to +60℃, >45
℃ Derating
|
Cooling
|
Smart Cooling
|
|
Noise
|
≤45 dB
|
|
Communication with BMS
|
RS485; CAN
|
|
Weight[kg]
|
35.6
|
|
Cabinet size（W*H*D）[mm]
|
420×670×233（Excluding connectors and brackets）
|
|
Ingress Protection(IP) Rating
|
IP 65
|
|
Installation Style
|
Wall-mounted
|
|
Warranty
|
5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
|
