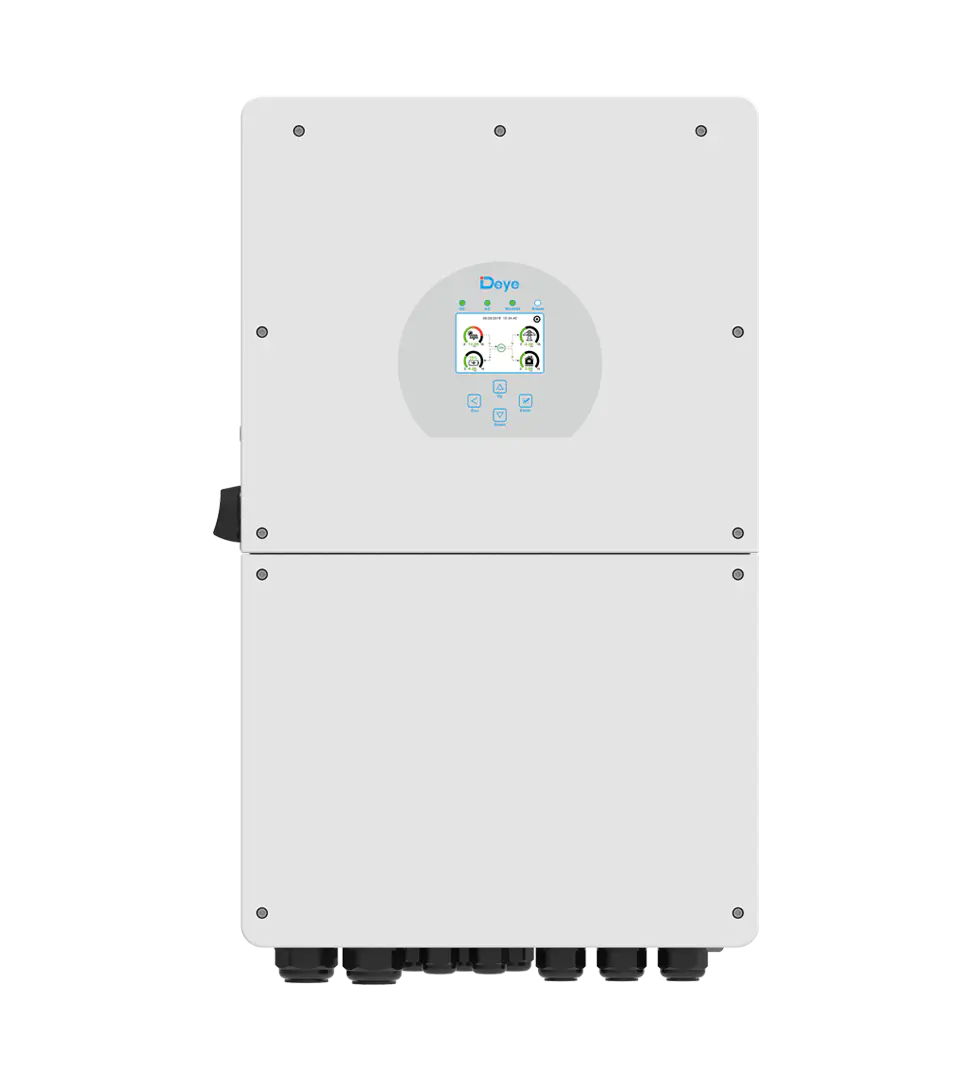

| Model | SUN-12K-SG01LP1-AU | SUN-14K-SG01LP1-AU | SUN-16K-SG01LP1-AU |
| Battery Input Data | |||
| Battery Type | Lead-acid or Lithium-ion | ||
| Battery Voltage Range(V) | 40-60 | ||
| Max.Charging Current(A) | 220 | 250 | 290 |
| Max.Discharging Current(A) | 220 | 250 | 290 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||
| Number of Battery Input | 2 | ||
| PV String Input Data | |||
| Max DC Input Power（W） | 18000 | 21000 | 24000 |
| Max. DC Input Voltage (V) | 500 | ||
| Start-up Voltage（V） | 125 | ||
| MPPT Voltage Range（V） | 150-425 | ||
| Rated DC Input Voltage (V) | 370 | ||
| Max. Input Short-Circuit Current (A) | 44+44+44 | ||
| Max. Operating PV Input Current (A) | 26+26+26 | ||
| No. of MPP Trackers/No. of Strings per MPP Tracker | 3/2+2+2 | ||
| AC Output Data | |||
| Rated AC Output/Active Power（W） | 12000 | 14000 | 16000 |
| Max AC Output/Apparent Power （VA） | 12000 | 14000 | 16000 |
| Rated AC Input/Output Current (A) | 52.2 | 60.9 | 69.6 |
| Max. AC Input/Output Current (A) | 52.2 | 60.9 | 69.6 |
| Max. Continuous AC Passthrough (grid to load) (A) | 100 | ||
| Peak Power (off-grid) (W) | 2 times of rated power, 10s | ||
| Power Factor Adjustment Range | 0.8 leading-0.8lagging | ||
| Rated Input/Output Voltage/Range (V) | 220/240 0.85Un-1.1Un | ||
| Rated Input/Output Grid Frequency/Range(Hz) | 50/45-55, 60/55-65 | ||
| Grid Connection Form | L+N+PE | ||
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | ||
| DC Injection Current | <0.5%ln | ||
| Efficiency | |||
| Max Efficiency | 97.60% | ||
| Euro Efficiency | 96.50% | ||
| MPPT Efficiency | ＞99% | ||
| Equipment Protection | |||
| Integrated |
DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection AC Output Overvoltage Protection, AC Output Short Circuit Protection, Thermal Protection DC Terminal Insulation Impedance Monitoring, DC Component Monitoring, Ground Fault Current Monitoring Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch Overvoltage Load Drop Protection, Residual Current (RCD) Detection, Surge protection level |
||
| Surge Protection Level | TYPE II(DC), TYPE II(AC) | ||
| Interface | |||
| Communication Interface | WIFI,RS485,CAN | ||
| General Data | |||
| Operating Temperature Range | - 40 to +60℃, >45℃ Derating | ||
| Permissible Ambient Humidity | 0~100% | ||
| Permissible Altitude | 2000m | ||
| Noise | ＜50 dB(A) | ||
| Ingress Protection(IP) Rating | IP 65 | ||
| Inverter Topology | Non-Isolated | ||
| Over Voltage Category | OVC II(DC),OVC III(AC) | ||
| Cabinet size（W*H*Dmm) | 464*763*282（Excluding connectors and brackets） | ||
| Weight (kg) | 48 | ||
| Type of Cooling | Intelligent Air Cooling | ||
| Warranty | 10 Years | ||
| Grid Regulation | AS/NZS 4777.2 | ||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||
