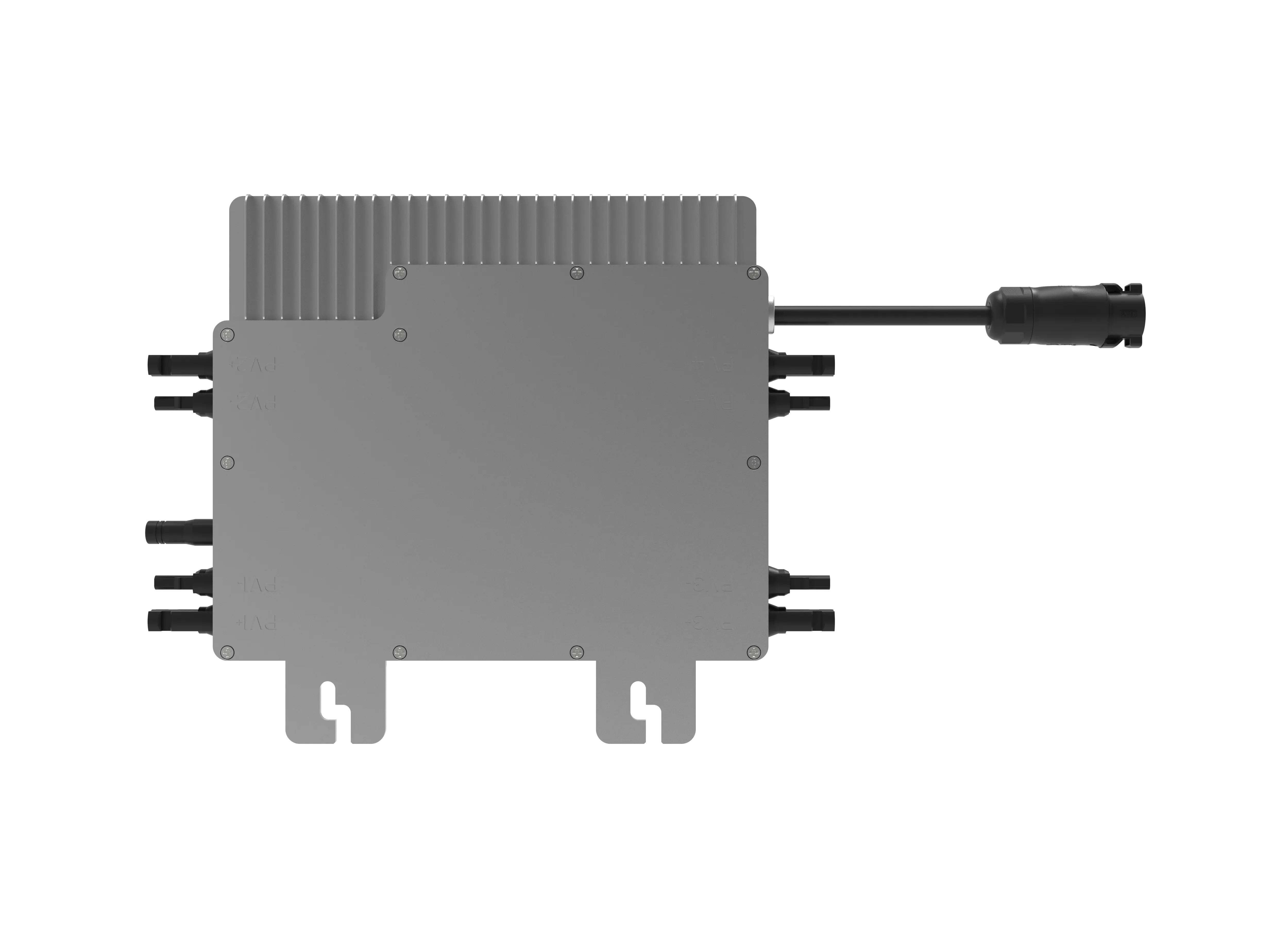

Model
|
SUN-M130G3-EU-Q0-P1
|
SUN-M160G3-EU-Q0-P1
|
SUN-M200G3-EU-Q0-P1
|
|
Input data (DC)
|
|||
|
Recommended Input Power (STC)
|
210-460W (4 Pieces)
|
210-560W (4 Pieces)
|
210-700W (4 Pieces)
|
|
Maximum Input DC Voltage (V)
|
60
|
||
|
MPPT Voltage Range (V)
|
25-55
|
||
|
Full Load DC Voltage Range (V)
|
30-55
|
30-55
|
30-55
|
|
Max. DC Short Circuit Current (A)
|
4×27
|
||
|
Max. Input Current (A)
|
4×18
|
||
|
No.of MPP Trackers
|
4
|
||
|
No.of Strings per MPP Tracker
|
1
|
||
|
Output Data (AC)
|
|||
|
Max. Output Apparent Power (VA)
|
1300
|
1600
|
2000
|
|
Rated Output Power (W)
|
1300
|
1600
|
2000
|
|
Rated Output Current (A)
|
6/5.7
|
7.3/7
|
9.1/8.7
|
|
Max.AC Output Current(A)
|
6/5.7
|
7.3/7
|
9.1/8.7
|
| Grid Connection Form Rated output voltage/range (V) | L+N+PE 220V/184V-242V 230V/ 195.5V-253V | ||
|
Rated Grid Frequency/range(Hz)
|
50Hz/45Hz-55Hz 60Hz/55Hz-65Hz
|
||
|
Power Factor AdjustmentRange
|
>0.99
|
||
|
Current Harmonic Distortion THDi
|
<3%
|
||
|
DC ComponentOf Grid
|
<0.5%ln
|
||
|
Maximum Units per Branch
|
4 | 4 | 3 |
|
Efficiency
|
|||
|
Max Efficiency
|
96.5%
|
||
|
MPPT Efficiency
|
99%
|
||
|
Mechanical Data
|
|||
|
Night Time Power Consumption
|
50mW
|
||
|
Ambient Temperature Range
|
-40-65℃, >45℃ derating
|
||
|
Cabinet Size (WxHxD mm)
|
306×258×36.5 (Excluding Connectors and Brackets)
|
||
|
Weight (kg)
|
5
|
||
|
cooling
|
Free Cooling
|
||
|
Enclosure Environmental Rating
|
IP67
|
||
|
Features
|
|||
|
Communication
|
WIFI
|
||
|
Grid Connection Standard
|
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98, VDE-AR-N 4105 | ||
|
Safety EMC / Standard
|
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
|
||
|
Warranty
|
10 years
|
||
