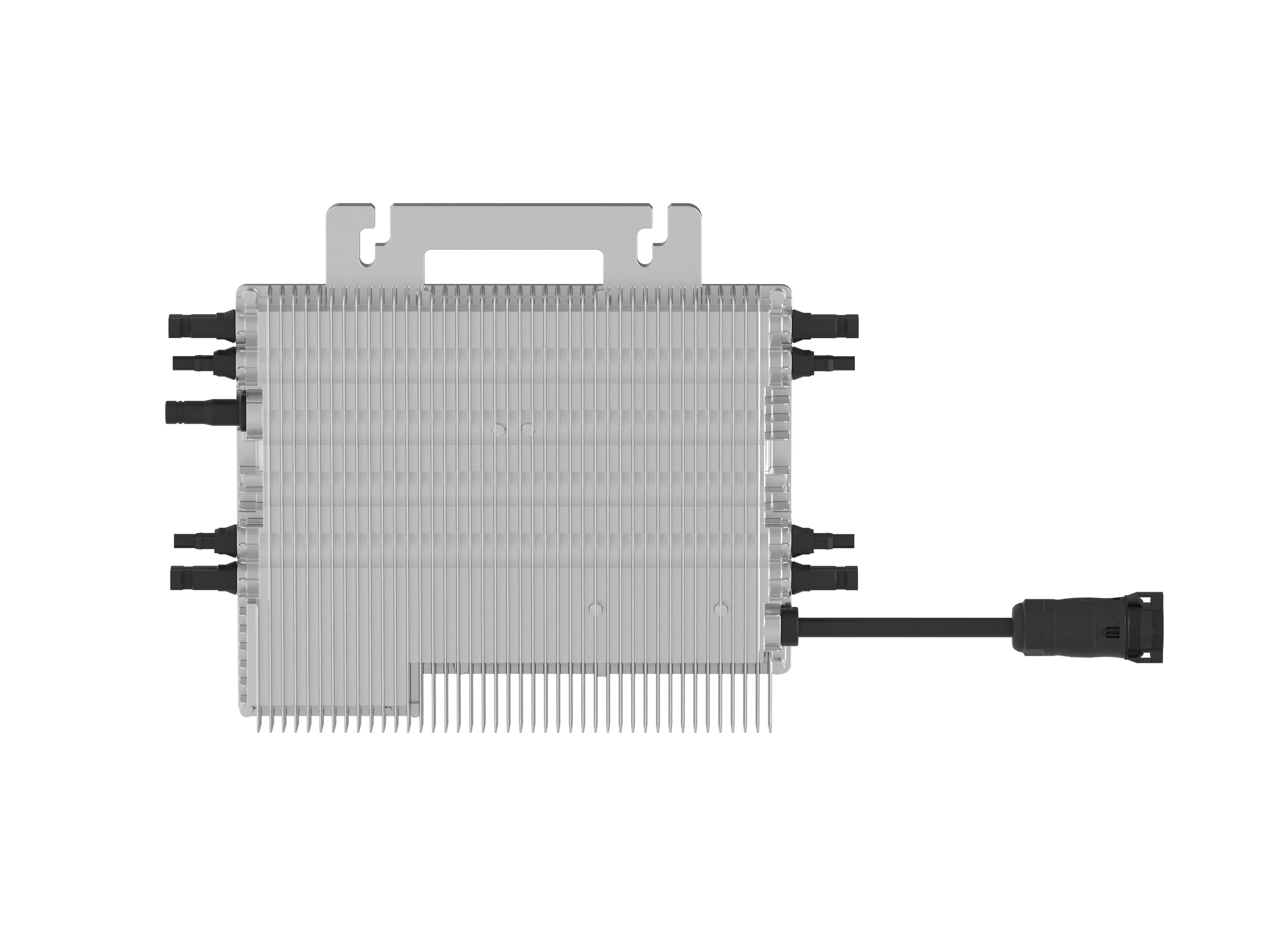

| Model | SUN-M130G4-EU-Q0 | SUN-M160G4-EU-Q0 | SUN-M180G4-EU-Q0 | SUN-M200G4-EU-Q0 | SUN-M220G4-EU-Q0 | SUN-M180G4-EU-Q0-P | SUN-M200G4-EU-Q0-P |
| PV String Input Data | |||||||
| Max. PV Input Power(W) | 210-460(4 Pieces) | 210-560(4 Pieces) | 210-630(4 Pieces) | 210-700(4 Pieces) | 210-770(4 Pieces) | 210-630(4 Pieces) | 210-700(4 Pieces) |
| Max. PV Input Voltage(V) | 60 | ||||||
| Start-up Voltage(V) | 20 | ||||||
| MPPT voltage range(V) | 25-55 | ||||||
| Rated PV Input voltage(V) | 42.5 | ||||||
| Max. Operating PV Input Current (A) | 15+15+15+15 | 18+18+18+18 | |||||
| Max. Input Short Circuit Current (A) | 22.5+22.5+22.5+22.5 | 27+27+27+27 | |||||
| No. of MPP Trackers/No. of String per MPP Tracker | 4/1 | ||||||
| AC Input/Output Side | |||||||
| Rated AC Output Active Power(W) | 1300 | 1600 | 1800 | 2000 | 2200 | 1800 | 2000 |
| Max.AC Output Apparent Power(VA) | 1300 | 1600 | 1800 | 2000 | 2200 | 1800 | 2000 |
| Rated AC output current (A) | 6/5.7 | 7.3/7 | 8.2/7.9 | 9.1/8.7 | 10/9.6 | 8.2/7.9 | 9.1/8.7 |
| Max.AC Output Current(A) | 6/5.7 | 7.3/7 | 8.2/7.9 | 9.1/8.7 | 10/9.6 | 8.2/7.9 | 9.1/8.7 |
| Rated output voltage/range (V) | 220/230 0.85Un-1.1Un | ||||||
| Grid Connection Form | L/N/PE | ||||||
| Rated Output Grid Frequency/range(Hz) | 50/45-55, 60/55-65 | ||||||
| Max. unit per branch | 5 | 4 | 3 | 3 | 3 | 3 | 3 |
| Power Factor Adjustment Range | 0.9 leading to 0.9 lagging | ||||||
| Total Current Harmonic Distortion THDi | <3% | ||||||
| DC Injection Current | <0.5%ln | ||||||
| Efficiency | |||||||
| Max. Efficiency | 96.50% | ||||||
| Euro Efficiency | 96 | ||||||
| MPPT Efficiency | >99% | ||||||
| Equipment Protection | |||||||
| DC Polarity Reverse Connection Protection | YES | ||||||
| AC Output Overcurrent Protection | YES | ||||||
| AC Output Overvoltage Protection | YES | ||||||
| AC Output Short Circuit Protection | YES | ||||||
| Thermal Protection | YES | ||||||
| DC Terminal Insulation Impedance Monitoring | YES | ||||||
| Power Network Monitoring | YES | ||||||
| Island protection monitoring | YES | ||||||
| Earth Fault Detection | YES | ||||||
| Overvoltage Load Drop Protection | YES | ||||||
| Interface | |||||||
| Communication Interface | WiFi | ||||||
| General Data | |||||||
| Operating Temperature Range (°C) | -40 to +65℃, >45℃ Derating | ||||||
| Permissible Ambient Humidity | 0~100% | ||||||
| Permissible Altitude (m) | 2000m | ||||||
| Noise (dB) | ≤ 25 | ||||||
| Ingress Protection(IP) Rating | IP 67 | ||||||
| Inverter Topology | Isolated | ||||||
| Over Voltage Category | OVC II(DC),OVC III(AC) | ||||||
| Cabinet Size（W*H*D）[mm] | 358*255.5*36.5（Excluding connectors and brackets） | ||||||
| Weight [kg] | 5.2 | ||||||
| Warranty [year] | 10 Years | ||||||
| Type Of Cooling | natural cooling | ||||||
| Grid Regulation |
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 |
||||||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||||
