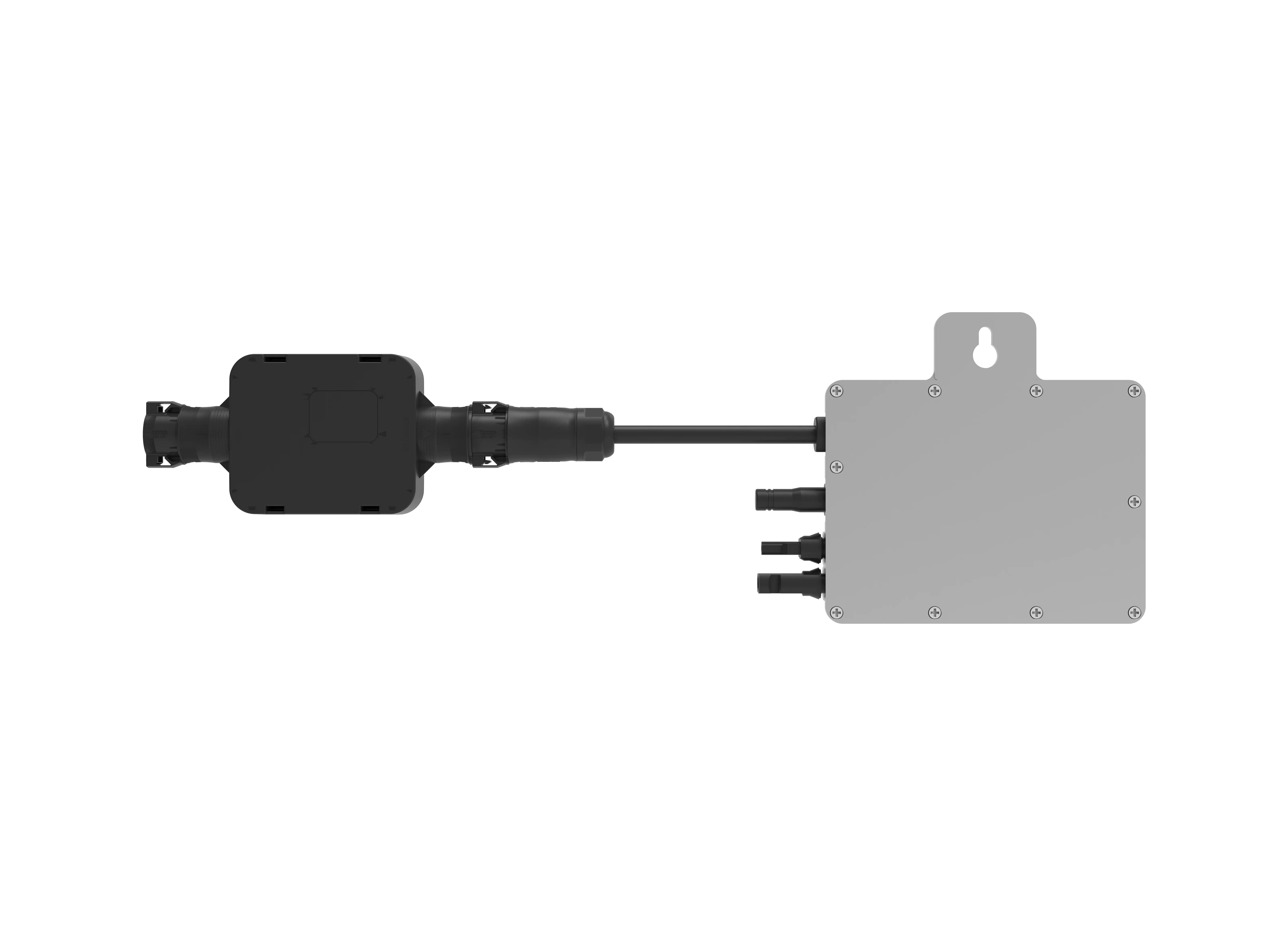

Model
|
SUN-M30G3-EU-Q0
|
SUN-M40G3-EU-Q0
|
SUN-M50G3-EU-Q0
|
|
Input data (DC)
|
|||
|
Recommended Input Power (STC)
|
210-420W (1 Pieces)
|
210-560W (1 Pieces)
|
210-700W (1 Pieces)
|
|
Maximum Input DC Voltage (V)
|
60
|
||
|
MPPT Voltage Range (V)
|
25-55
|
||
|
Full Load DC Voltage Range (V)
|
30-55
|
33-55
|
40-55
|
|
Max. DC Short Circuit Current (A)
|
19.5
|
||
|
Max. Input Current (A)
|
13
|
||
|
No.of MPP Trackers
|
1
|
||
|
No.of Strings per MPP Tracker
|
1
|
||
|
Output Data (AC)
|
|||
|
Max. Output Apparent Power (VA)
|
300
|
400
|
500
|
|
Rated Output Power (W)
|
300
|
400
|
500
|
|
Rated Output Current (A)
|
1.4/1.4
|
1.9/1.8
|
2.3/2.2
|
|
Max.AC Output Current(A)
|
1.4/1.4
|
1.9/1.8
|
2.3/2.2
|
| Grid Connection Form Rated output voltage/range (V) | L+N+PE 220V/184V-242V 230V/ 195.5V-253V | ||
|
Rated Grid Frequency/range(Hz)
|
50Hz/45Hz-55Hz 60Hz/55Hz-65Hz
|
||
|
Power Factor AdjustmentRange
|
>0.99
|
||
|
Current Harmonic Distortion THDi
|
<3%
|
||
|
DC ComponentOf Grid
|
<0.5%ln
|
||
|
Maximum Units per Branch
|
17 | 13 | 10 |
|
Efficiency
|
|||
|
Max Efficiency
|
96.5%
|
||
|
MPPT Efficiency
|
99%
|
||
|
Mechanical Data
|
|||
|
Night Time Power Consumption
|
50mW
|
||
|
Ambient Temperature Range
|
-40-65℃, >45℃ derating
|
||
|
Cabinet Size (WxHxD mm)
|
144×189×31.5 (Excluding Connectors and Brackets)
|
||
|
Weight (kg)
|
1.7
|
||
|
cooling
|
Free Cooling
|
||
|
Enclosure Environmental Rating
|
IP67
|
||
|
Features
|
|||
|
Communication
|
WIFI
|
||
|
Grid Connection Standard
|
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98, VDE-AR-N 4105 | ||
|
Safety EMC / Standard
|
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
|
||
|
Warranty
|
10 years
|
||
|
|
|
||
|
Network and System Protection Device
|
SUN-MI-RELAY-01
|
||
|
AC Intput Data (Inverter)
|
|
||
|
Nominal Voltage
|
220V/230V
|
||
|
Nominal Frequency
|
50Hz
|
||
|
Max AC Current
|
12A
|
||
|
Nominal AC Current
|
12A
|
||
|
Matching Inverter
|
MicroInverter
|
||
|
AC Output Data(Grid)
|
|
||
|
Nominal Voltage
|
220V/230V
|
||
|
Nominal Frequency
|
50Hz
|
||
|
Max AC Current
|
12A
|
||
|
Nominal AC Current
|
12A
|
||
|
General Data
|
|
||
|
Ambient Temperature Range
|
-40-65℃
|
||
|
Humidity
|
0%-100% RH
|
||
|
Cabinet Size (WxHxD)
|
111mm*95mm*37.7mm (Excluding Connectors and Brackets)
|
||
|
Weight
|
340g
|
||
|
Enclosure Environmental Rating
|
IP67
|
||
|
Communication
|
Wireless/WIFI
|
||
|
Safety EMC / Standard
|
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2, VDE-AR-N 4105
|
||
|
Warranty
|
10 Years
|
||
