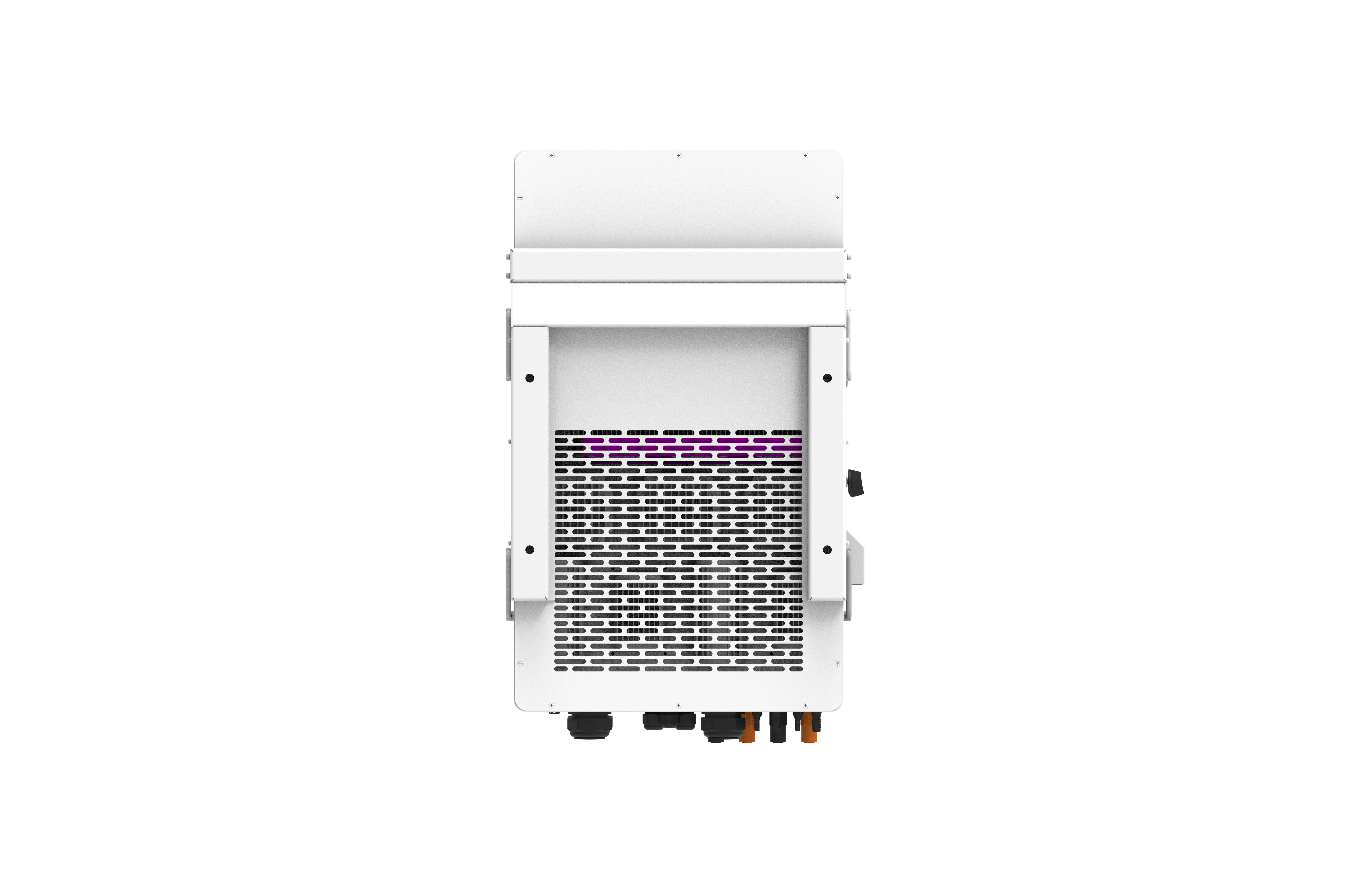

Model
|
SUN-29.9K-SG01HP3-EU-BM3
|
SUN-30K-SG01HP3
-EU-BM3
|
SUN-35K-SG01HP3
-EU-BM3
|
SUN-40K-SG01HP3
-EU-BM4
|
SUN-50K-SG01HP3
-EU-BM4
|
|
Battery Input Data
|
|
|
Battery Type
|
Lithium-ion
|
|
Battery Voltage Range(V)
|
160-800
|
|
Max.Charging Current(A)
|
50+50
|
|
Max.Discharging Current(A)
|
50+50
|
|
Charging Strategy for Li-ion Battery
|
Self-adaption to BMS
|
|
Number of battery input
|
2
|
|
PV String Input Data
|
|
|
Max DC Input Power（W）
|
38870
|
39000
|
45500
|
52000
|
65000
|
|
Max DC Input Voltage（V）
|
1000
|
|
Start-up Voltage（V）
|
180
|
|
MPPT Voltage Range（V）
|
150-850
|
|
Rated DC Input Voltage(V)
|
600
|
|
Max Input Short-Circuit Current（A）
|
55+55+55
|
55+55+55+55
|
|
Max Operating PV Input Current（A）
|
36+36+36
|
36+36+36+36
|
|
No.of MPP Trackers/No.of String Per MPP Tracker
|
3/2+2+2
|
4/2+2+2+2
|
|
AC Input/Output Data
|
|
|
Rated AC Input/Output Active Power（W）
|
29900
|
30000
|
35000
|
40000
|
50000
|
|
Max AC Input/Output Apparent Power （VA）
|
29900
|
33000
|
38500
|
44000
|
55000
|
|
Peak Power (off-grid)（W）
|
1.5 times of rated power,10s
|
|
Rated AC Input/Output Current（A）
|
45.4/43.4
|
45.5/43.5
|
53.1/50.8
|
60.7/58.0
|
75.8/72.5
|
|
Max AC Input/Output Current（A）
|
45.4/43.4
|
50/47.9
|
58.4/55.8
|
66.7/63.8
|
83.4/79.8
|
|
Max. Three-phase Unbalanced Output Current（A）
|
60
|
60
|
60
|
70
|
83.3
|
|
Max Continuous AC Passthrough (grid to load)（A）
|
200
|
|
Rated Input/Output Voltage/Range(V)
|
220/380V，230/400V 0.85Un-1.1Un
|
|
Grid Connection Form
|
3L+N+PE
|
|
Rated Input/Output Grid Frequency/Range
|
50/45-55, 60/55-65
|
|
Power Factor Adjustment Range
|
0.8 leading-0.8 lagging
|
|
Total Current Harmonic Distortion THDi
|
<3% (of nominal power)
|
|
DC Injection Current
|
<0.5%ln
|
|
Efficiency
|
|
|
Max Efficiency
|
97.60%
|
|
Euro Efficiency
|
97.0%
|
|
MPPT Efficiency
|
＞99%
|
|
Equipment Protection
|
|
|
DC Polarity Reverse Connection Protection
|
YES
|
|
AC Output Overcurrent Protection
|
YES
|
|
AC Output Overvoltage Protection
|
YES
|
|
AC Output Short Circuit Protection
|
YES
|
|
Thermal Protection
|
YES
|
|
DC Terminal Insulation Impedance Monitoring
|
YES
|
|
DC Component Monitoring
|
YES
|
|
Ground Fault Current Monitoring
|
YES
|
|
Power Network Monitoring
|
YES
|
|
Island Protection Monitoring
|
YES
|
|
Earth Fault Detection
|
YES
|
|
DC Input Switch
|
YES
|
|
Overvoltage Load Drop Protection
|
YES
|
|
Residual Current (RCD) Detection
|
YES
|
|
Surge Protection Level
|
TYPE II(DC), TYPE II(AC)
|
|
Interface
|
|
|
Communication Interface
|
WIFI, RS485, CAN
|
|
General Data
|
|
|
Operating Temperature Range
|
-40℃+60℃,＞45℃ Derating
|
|
Permissible Ambient Humidity
|
0-100%
|
|
Permissible Altitude
|
2000m
|
|
Noise
|
≤ 65 dB(A)
|
|
Ingress Protection(IP) Rating
|
IP 65
|
|
Inverter Topology
|
Non-Isolated
|
|
Over Voltage Category
|
OVC II(DC),OVC III(AC)
|
|
Cabinet size（W*H*D）[mm]
|
527*894*294（Excluding connectors and brackets）
|
|
Weight[kg]
|
80
|
|
Warranty
|
5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
|
|
Type Of Cooling
|
Intelligent air cooling
|
|
Grid Regulation
|
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25, G99, VDE-AR-N 4105
|
|
Safety EMC/Standard
|
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
|
