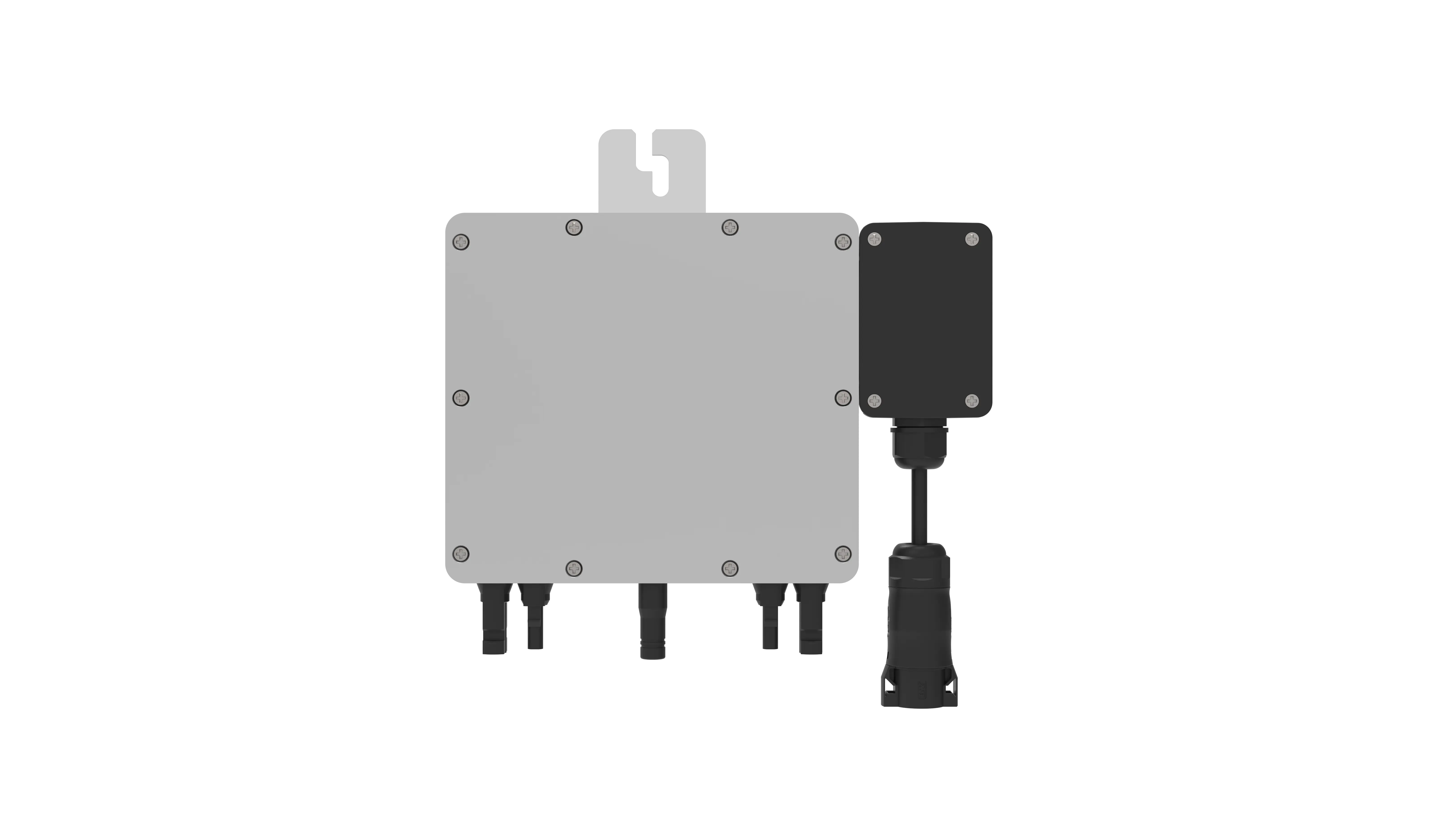

| Model | SUN-M50G4-AU-230-Q0 | SUN-M60G4-AU-230-Q0 | SUN-M80G4-AU-230-Q0 | SUN-M90G4-AU-230-Q0 |
| PV String Input Data | ||||
| Max. PV Input Power(W) | 210-350(2 Pieces) | 210-420(2 Pieces) | 210-560(2 Pieces) | 210-630(2 Pieces) |
| Max. PV Input Voltage(V) | 60 | |||
| Start-up Voltage(V) | 20 | |||
| MPPT voltage range(V) | 25-55 | |||
| Rated PV Input voltage(V) | 42.5 | |||
| Max. Input Short-Circuit Current (A) | 13+13 | |||
| Max. Operating PV Input Current(A) | 19.5+19.5 | |||
| No. of MPP Trackers/No. of String per MPP Tracker | 2/1 | |||
| AC Input/Output Side | ||||
| Rated AC Output Active Power(W) | 500 | 600 | 800 | 900 |
| Max.AC Output Apparent Power(VA) | 500 | 600 | 800 | 900 |
| Rated AC output current (A) | 2.2 | 2.7 | 3.5 | 4 |
| Max.AC Output Current(A) | 2.2 | 2.7 | 3.5 | 4 |
| Rated output voltage/range (V) | 220/240 0.85Un-1.1Un | |||
| Grid Connection Form | L/N/PE | |||
| Rated Output Grid Frequency/range(Hz) | 50/45-55 | |||
| Max. unit per branch | 10 | 8 | 6 | 6 |
| Power Factor Adjustment Range | 0.95 leading to 0.95lagging | |||
| Total Current Harmonic Distortion THDi | <3% | |||
| DC Injection Current | <0.5%ln | |||
| Efficiency | ||||
| Max. Efficiency | 96.50% | |||
| Euro Efficiency | 96.00% | |||
| MPPT Efficiency | >99% | |||
| Equipment Protection | ||||
| DC Polarity Reverse Connection Protection | YES | |||
| AC Output Overcurrent Protection | YES | |||
| AC Output Overvoltage Protection | YES | |||
| AC Output Short Circuit Protection | YES | |||
| Thermal Protection | YES | |||
| DC Terminal Insulation Impedance Monitoring | YES | |||
| Power Network Monitoring | YES | |||
| Island protection monitoring | YES | |||
| Earth Fault Detection | YES | |||
| Overvoltage Load Drop Protection | YES | |||
| Interface | ||||
| Communication Interface | WiFi | |||
| General Data | ||||
| Operating Temperature Range (°C) | -25 to +65℃, >45℃ Derating | |||
| Permissible Ambient Humidity | 0~100% | |||
| Permissible Altitude (m) | 2000m | |||
| Noise (dB) | ≤ 25 | |||
| Ingress Protection(IP) Rating | IP 67 | |||
| Inverter Topology | Isolated | |||
| Over Voltage Category | OVC II(DC),OVC III(AC) | |||
| Cabinet Size（W*H*D）[mm] | 280.5*190*40（Excluding connectors and brackets） | |||
| Weight [kg] | 1.9 | |||
| Warranty [year] | 10Years | |||
| Type Of Cooling | natural cooling | |||
| Grid Regulation | EN50549, AS4777.2:2015, VDE0126-1-1, IEC61727, VDEN4105-2018，G99 | |||
| Safety EMC/Standard | IEC62109-1/-2, NBT32004-2018, EN61000-6-1,EN61000-6-2,EN61000-6-3,EN61000-6-4 | |||
